High-Efficiency Aggregate and Material Classification

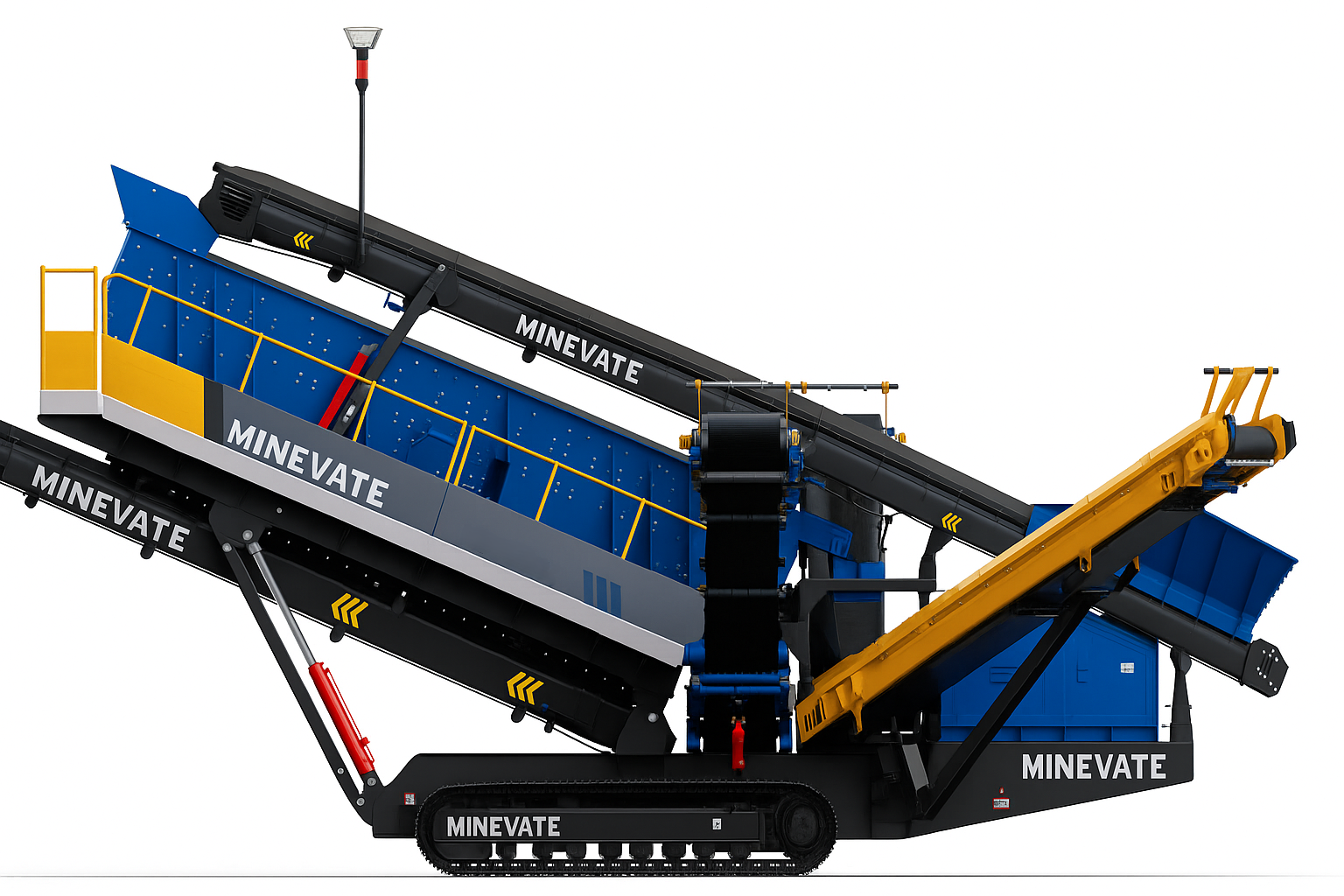

MTS1850 is a tracked mobile horizontal screen plant designed for high efficiency, precise classification, and maximum portability.

Key Features

• Triple-shaft drive system

• 1850 × 5000 mm screen box

• High output and accurate screening in demanding quarry, mining, and recycling applications

Technical Specifications

• Model: MTS1850

• Screen Type: Horizontal, 3-deck

• Screen Dimensions: 1850 × 5000 mm (W × L)

• Drive Power: 30 kW – Triple-shaft elliptical motion

• Decks / Outputs: 3 decks → 4 product fractions

• Mobility: Tracked, hydraulic driven

• Conveyors: 3 product discharge belts + oversize recirculation

• Transport Mode: Hydraulic folding, quick setup

• Capacity Range: 30 – 300 tph (depending on material)

• Power Source: Diesel engine

Application Areas

• Aggregate production (sand, gravel, crushed stone)

• Limestone, dolomite, gypsum, and non-abrasive minerals

• Construction & demolition (C&D) recycling

• Asphalt and concrete recycling

• Coal, biomass, and industrial bulk materials

Optional Features

• Dust suppression system (spray bars)

• Magnetic separator for metal separation

• Remote control operation

• Side conveyor for mid-size bypass

• Centralized lubrication system

• Wear-resistant liners for abrasive materials

Mobility and Setup

• Compact transport dimensions for easy relocation

• Fast on-site setup with diesel-powered tracks

• Designed to adapt to diverse site conditions

Why Minevate?

• Durability: Reinforced frame and heavy-duty components

• Mobility: Quick site-to-site relocation and portable design

• Flexibility: Various screening media options (wire mesh, polyurethane, rubber)

• Efficiency: High capacity with precise product separation
